Thursday, December 31, 2015

Crunching in Some Tweaks Before 2016

Happy New Year!

...almost. Today was mainly a work day in which I responded to feedback and tried (unsuccessfully, yet again) to build the python build that a former employee left behind. After reinstalling the Python libraries after Tcl/Tk wasn't being resolved properly and doing the proper conversions of the build document from DOS to Unix (dos2Unix, oddly enough did not work, so I had to remove the characters manually (sed -i 's/\r$//' insert-file-here) ), PyInstaller seemed to not support a certain type of replace it was attempting. Whether this is because the latest version of PyInstaller is too new or not, I am uncertain. Honestly, there's a lot of things to be uncertain about regarding what proper Python tools to use.

Going back to the actual Unity work, I managed a couple of tweaks here and there. By employing the motion blur provided by Unity's standard assets, I did a convincing speed blur effect upon hyper speed. It's not the official camera motion blur script, but taking a render texture and applying the offsets to the main scene, one can get a pretty cool effect:


On top of that, I also put in some background assets and a script that repeats them over time to fit the looping nature of the scene. I don't know if it was entirely necessary, but I exercised taking messy for-loops out and mainly worked with recursive programming. After learning about template metaprogramming. I could also put in some template overloads if I really wanted to follow that route.

As for the floating ball scene, I applied some tweaks with a gently swaying motion to reward objects. Coroutines came to the rescue (don't they always) and applied a back-and-forth constant force (doing away with external gravity entirely). The tricky part, however, was reversing velocity; an instant change was too jarring, but reversing the velocity applied by a constant force caused an unequal distribution on one end, causing the objects to fly veeeeery far into the air.

The solution for that was a quick but gentle velocity decrease function; if the velocity sign did not match the force sign, the function would move the velocity toward 0, giving the force a fighting chance and getting a gentle back-and-forth motion:


What next? Another application in the works is calling for weather. Can I make clouds without referring to a paid package? I better hope so.

Wednesday, December 30, 2015

Studying Is Done! For Now

Today marks the end of my traveling through Scott Meyers's Effective C++ books.

Step 1: With lambda expressions, they offer plenty of flexibility in relation to std::bind calls.

Step 2: Thread-based programming? Eh, if you want to deal with oversubscription and system_thread exceptions. And also optimize the thread programming, but most of the time put the trust in async.

Step 3: And when you do, feel free to work with the default launch policy (sync or async), but avoiding checks associated with deferred synchronous futures (fancy objects created from async) can be done by getting a little more specific with std::launch::async.

Step 4: Making the std::thread class unjoinable on all threads prevents premature termination if anything goes wrong during a joinable thread.

Step 5: However, destruction behavior varies on thread handles, especially with futures. With a future (usually the last in a line of shared_futures) referring to a shared state (the line between a promise and a future - almost sounds lovely), it will do an odd exceptional behavior by blocking until the task completes. Otherwise it destroys all data members.

Step 6: For one-shot event communication, promises and futures can work quite well! Just remember to keep their parameters void since they won't be used.

Step 7: For concurrency, std::atomics are quite useful. However, for unpredictable memory like peripheral memory, just using atomics could be painful. Mark those special spots with volatile to prevent unnecessary optimizations on unpredictable data.

Step 8: It's a small case (copyable parameters that are cheap to move and always copied), but passing by value makes a difference where it's usually avoided.

Step 9: Emplace! It constructs and inserts in the same breath! Under the right circumstances, it can work well when running different types into a list insertion.

I didn't have too much work to do on the EEG work today; it was mainly composed of setting a coroutine of negation protection, in the case that an interval for negation fired right after a reward. The negation protection is another time that gives a bit of padding to the negation firing event.

What next? Who knows? Maybe I can get back to my capstone code and post screenshots again.

Tuesday, December 29, 2015

Leaning and Hyper Speed

Today was a day for me to get a little more work done with the Unity EEG project. The next step in input was to set a Hyper Speed (or a fairly fast speedy force) on the ball if enough rewards were given. Luckily, the negate reward coroutine was perfect for tallying up the amount of reward events and applying the necessary force. I just had to be careful not to make it look like a jump; the direction had to be the direction the ramp was following, not just a simple Vector3.forward.

As for another portion of the Infinite Ball roll, I was also tasked with creating a leaning object. This required a force to be applied to the ball at a certain threshold, waggling around without exactly falling off.

Along with that, I was also asked to see if the Unreal HTML5 projects can be used similarly like we are using the Unity Web Player now. Can it be done? I'll have to find out.

Almost done with studying as well! Went over plenty of move semantics, perfect forwarding fallacies, and universal references before making a start on lambda expressions.


Monday, December 28, 2015

Smart-Alec Pointers

Ah, another round with learning about smart pointers! Luckily, this study revealed that much progress has been made in C++11 and C++14 since the previous text that told me I had to make my own shared_ptr.

Step 1: Unique_ptr is good for exclusive ownership, and great for pointer-to-implementation (Pimpl, heh) idioms!

Step 2: Shared_ptr is now a legitimate part of the standard. Just be careful that the shared_ptr keeps track and doesn't leave dangling pointers (by way of cycled references and what not)

Step 3: And in the case of said cyclical references, use weak_ptr for its keen ability to detect whether it dangles!

Step 4: Use make_shared and make_unique over duplicate code and allocation by constructing based off a new constructed object. It's just more efficient that way (except for weak_ptrs that get destroyed after shared_ptrs)

Step 5: When using the Pimpl idiom, make sure to declare special member functions BUT put them implemented in the implementation file.

Step 6: std::move and std::forward actually do nothing like it says; it just makes something that could be eligible for moving by unconditional and conditional rvalue casting. Move is simpler, but forward is more correct for rvalue casting.

Step 7: Keep const member functions thread safe! Use atomics for singular values/memory locations, but for anything else, nothing works better than a mutex.

Step 8: Constexpr is a good way to keep values const and known during compilation, while it allows functions to produce constexpr return values and function regularly with normal values

Step 9: Declaring noexcept is a good idea for things that don't emit exceptions (std::pow, swap, moves) to help optimize the calls for those functions.

Nearly done! Just a couple more days.

Sunday, December 27, 2015

Preferring This Modern, Newfangled Keyword

Today was mainly a study day due to my busy schedule today. Not busy enough to keep from learning!

Step 1: auto may produce undesired types in the case of proxy classes. Explicitly cast that type when declaring auto variables to prevent this!

Step 2: {} can produce different construction behavior when working with numeric vectors ({10, 20}, what does it make?) and has preference for initializer_list. However, it prevents some nasty things like the parse that makes default constructors look like normal functions.

Step 3: Prefer nullptr to 0 and NULL. One is a pointer (or all types) type, and the others are integral types. This can turn into some nasty overloading when trying to call functions on each different null type, so stick to nullptr.

Step 4: Prefer alias declarations to typedefs. Using blah = tends to be a little better than putting typedefs in structs, along with reducing dependent types while programming.

Step 5: Prefer enum class to enum; scoped enums help strongly type enumerated values and prevents comparing a Color to a number.

Step 6: Prefer deleted functions to private,  undefined functions. Some member or friend might try.

Step 7: Declare overriding functions with override, so the compiler can check whether the function properly overrides something.

Step 8: Prefer noexcept for functions like move operations and swap that do not emit exceptions; this provides  more efficient code that helps to optimize the stack during possible preparation for exceptions.

Saturday, December 26, 2015

Web Player Doesn't Want Your Dirty IO

Today was definitely a busy day, but a good day to tackle a bug and learn an interesting thing about the (soon-to-be-deprecated) Unity Web Player build.

The problem in question was the pause state; the pause state was relayed from the EEG software, but whenever an application is loaded, there's no way for the HTML player to grab the state; it's a one-way street, so the pause has to be saved for a rainy day.

What to do? Well, common sense says that one can just use a BinaryFormatter to serialize and write data to a file, which Unity supports with a persistent data path on whatever device it's running on. The Web Player, however, does not support this traditional IO styling of saving data. No reading or writing serializable data allowed?

Do not fret! I only needed to save a boolean value, so the way to go was PlayerPrefs, which is a small preferences class actually stored in the Unity build. This allows the setting and getting of values such as ints and floats in a key-value type system, where the key is a string name. However, there was also no Get/Set Bool, so I had to default to wonky static functions that, for better or for worse, translate to value ? 1 : 0. Ternary operators are not the most readable, but it's quick and gets the job done.

What next? I finished the STL C++ book and am moving onto C++ 11 and C++ 14, letting me know how type deduction works and how auto and template based type deduction are essentially like each other except for bracketed definition of values. Yeuch.

Friday, December 25, 2015

Christmas Is No Excuse to Not Program

Happy Holidays! Time to program.

Both yesterday and today I brainstormed over what to do with creating a "curved path", like my supervisors wanted. Ideally, there'd be some elegant, free spline mesh deformation tool already available with Unity to make my dreams come true.

Nah. I brushed up on procedural mesh generation and am currently in the midst of building sides of a mesh for a possible wrap-around repeated square generation to produce a track along a specific spline:


(I promise you, that's not the default Unity cube)

As for the tessellator work, I was tasked with also creating a reverse behavior on the tessellator, so that it would start spinning and crazy and displaced and slowly come back into orderly place. This required the use of Unity's Constant Force modules, with a negative-reward-based subscriber that increased and decreased a constant spinning torque on the module.

I also looked into the various uses and pitfalls  of function objects, including an interesting fact: usually, the act of abstracting code leads to extra costs, but function objects actually save more time than actual functions being sent into algorithms. Who knew?

Wednesday, December 23, 2015

Point and Spin

Today was a day to perfect and make sure pausing and tessellation worked the way it should. Thankfully I fixed it before committing the most recent work, since I was putting the commands for resuming the work in the Scale change command, instead of the actual run command. Been a long day...

As for the tessellation, I figured a sharp change in tessellation would not do, so I incorporated a smooth linear interpolation from the current displacement to a target displacement. I also figured a more interesting movement (like a spinning motion) would be more interesting to show off the tessellation, so I put in a torque force that was applied, with angular drag doing the work for negating rewards for me. Lo and behold, a spinny-spiky-crystal thing!


As for studies today, I mainly went over associative containers and iterators (and ran out of notebook space). For example, casting from const_iterators to iterators is impossible, but by constructing a new iterator and moving it to the current const_iterator position is feasible using advance and distance. Problem is....is it a random access iterator, or a bidirectional iterator?

Also, maps have a very interesting "add and update" logic associated with their [ ] operators, so one can balance between using [ ] and inserts to make faster updating and adding, respectively.

Also, the age-old question that confuses many new to associative containers (me): What is the difference between equality and equivalence?

Equality? Just equal values. Equivalence? Neither precedes the other in a sort order. Think of it as !(x < y) && !(y < x). All strange sort orders (ignoring case, <=) applies, although it's wise to return false on an equal operator.

What next? If artists don't come to my rescue, I might just work on procedural mesh creation.

Tuesday, December 22, 2015

Extra Pointy Pausing

Today was a day to further some interesting progress on the negative side of the EEG software input; instead of representing a specific amplitude and threshold of inhibitor wavelengths, I was tasked with creating a negative reward system; if the rewards aren't coming fast enough, negative rewards (i.e. reversal of reward effects) start happening. In that case, I came back to my old friend (the coroutine) and set a timer to negate rewards after a set time. If the rewards come fast enough, the scene works nicely. I even repurposed some classes like the color changer of the sky to go towards a negative color upon negation of rewards.

I also starting fitting some of the other EEG software events with the Unity game, including a pause screen that only unpauses when the EEG software unpauses its system:


As for another step in the next application, I also looked into setting a displacement shader with tessellation values. By extruding the vertex in the direction of a specified normal displacement map (with extra vertices from tessellation!), one will be able to achieve an interesting effect over time with the reward system soon:


And as for studies? Never think that a vector<bool> is anything that actually contains bool objects. Nay, it contains bitfields. Try a deque<bool> instead.

Monday, December 21, 2015

Choose Your Own Reward Adventure

Phew! Today's been quite the busy day and studying isn't done just yet (although I see the algorithmic difference now from using empty() as opposed to size()). My task in my EEG work today was to separate rewards from each other on an activated menu.

How that works is that the subscribers attaching and detaching from the reward event controller are now controlled by a toggled UI interface. That said, that allows me to separate the pieces and parts of each reward effect even further (sound cues separated from bouncing and floating) to create a more customized experience.


That, and bright green explosions! Just what a reward state needs.

Sunday, December 20, 2015

Finishing More Effective C++

Today was a bit of a break day with the family, but I managed to roll in some lessons and wrap up the sequel to the Effective C++ book, More Effective C++.

Step 1: Smart pointers are ideal - a lot has to be done by oneself, overloading dereferencing, constructors, deconstructors, and deciding whether the raw data needs access. It is ideal, though.

Step 2: Reference counting is also a very important thing when considering extensions for smart pointers (shared_ptr from TR1?), and helping a Flyweight-style pattern when object creation is expensive.

Step 3: Proxy classes can help when doing things like multidimensional dynamic arrays (Array2D of Array1Ds) but can effectively betray the assumptions of the main class, especially with implicit type conversions.

Step 4: Making functions virtual with respect to multiple parameters? Double dispatching? Either submit to a terrifying if-else loop or attempt a set of many functions that emulate pointers to a virtual table.

Step 5: Program in the future tense. Focus on prevention over documentation and make complete classes. Take advantage of paranoia.

Step 6: Non-leaf classes can lead to problems when transferring data by way of things like the copy assignment operator. It's best to keep non-leaf classes abstract and keep the fringe classes the ones that are used in instantiation.

Step 7: Combining C++ with C may be inevitable, so make use of extern, keep memory management to their specific methods (malloc-free, new-delete), put the main in C++, and keep OOP-related functions and objects out of C-compatible programming.

Step 8: Start STL.

Which is what I'll be doing. Onto studying the Standard Template Libraries!

Saturday, December 19, 2015

Bringing It Together

Today was a small step forward for the EEG work; since I was busy moving back to Ohio for Winter Break, I decided a good idea would be to set the two applications I was working on to a simple set of loading levels. The current selection in the software is just a single HTML game with a single Unity file, so a build that would allow both applications (and more) at once would be necessary.

As for studying progress, more interesting and complex things abound!

Step 1: Where do REAL temporary objects come from? Implicit conversions and return values from functions, and that can be fixed!

Step 2: By returning constructor arguments instead of returning a temporary value, we can optimize a program and use a relatively standard optimization.

Step 3: Overloading functions (Add(int, MadeUp) instead of implicit conversion) can prevent the temporary objects that are created during implicit type conversions.

Step 4: Using += instead of = (and using the += inside a + operator) can help reduce implicit type conversions as well!

Step 5: Use alternative libraries. This is a small section, but helps illuminate the pros and cons of libraries such as <iostream> (type safe, portable) and <stdio> (small and fast executables)

Step 6: Virtual functions cost plenty! Virtual base tables and pointers to those tables keep in mind how important it is to determine where to produce those tables. A heuristic helps put them in place only where needed, but that can be subverted by inlining. (So don't inline)

Step 7: Virtualizing constructors and non-member functions can be tricky, but possible.

Step 8: Limiting the amount of objects of a class can be done by extending the Singleton to include a max set of references and an exception to throw in case it goes over that amount. It all depends on how "exceptional" those references are though...

Step 9: It's difficult, nay impossible to determine whether an object is on the heap or not, but actually quite simple to determine whether it's alright to delete itself. Do the latter.

Next? More techniques and miscellany!

Friday, December 18, 2015

Continuously Rolling

Phew! Today was certainly a difficult day. I nearly lost an important scene file when trying to work on changing levels; looks as if the command receiver and controller did not want to be turned into a prefab, and a backup copy thankfully saved me.

As for progress today, I was tasked with working on a rolling ball application. The main portion of this application is to impose infinite rolling (I would think for now) with effects from rewards that would benefit the ball (keeping on the path? Bouncing?). Oddly enough, I'm experiencing odd issues and a delay on how long it takes for the program to receive JSON commands; this might be attributed to odd issues I'm experiencing with random Python errors (greenlet.py) that I run into.

As for the infinite rolling, I decided to setup a set of three strips of land (similar to a scrolling background) and had the ball roll along those strips. By placing the strips in the exact right locations and using a trigger teleportation script, the ball now rolls infinitely along the same three strips of land without making it look as if it's interrupting its movement.

Due to the odd issues involving trying to get the program to actually receive commands, I decided a simple reward output that didn't necessarily approach an end state with such peril would be necessary, so I put in a simple bounce. Like the CharacterController in Unity, the ball requires a raycast to consistently detect a ground area; I figured that raycast would only be necessary when a reward is thrown, reducing the amount of possibly costly calls.

What next? I'll have to get ahold of my supervisor and see what else I can work on.


Thursday, December 17, 2015

Actual Screenshots

Good news today! I made some actual progress on the EEG project! From what I found out yesterday, there is a specific class that acts as an event handler for anticipating each event that the EEG device sends to the application. The main events I look for are the ones in which threshold changes, amplitude changes, and rewards are given.

The rewards weren't exactly implemented yet, so I pulled in a series of objects that would begin glowing and floating upon reception of an award. The rewards (and the amplitude/threshold ratios for the sky and pitch) are subscribers to the event handler (Observer Pattern!) that activate these derived classes of the subscribers when the events are fired.

Luckily this leads to actual visuals and screenshots that can now be described as a "game":



As for studies, I looked ahead to figure out the amount of items I need to study and found out that the rough average is 9 items per day. Phew! I definitely have a ways ahead of me. A lot of what I'm now studying is a bit of a retread in certain spots (C++ style casts, the difference between reference and pointer) but I did learn some interesting bits, including the reason why people lean towards prefixes instead of postfixes for incrementing and decrementing. The return then increment style of postfix requires an extra object to be made, which is not too bad for built in types. However, if the object is a large object iterator, prefixes are definitely recommended to increment then return, not requiring a temporary copy.

As for the work I'm doing on the prototype, the other facets of AI other than the controller are proving to be extra tricky. It's particularly archaic in how the Receive Tick as well as Receive Execute events even have C++ counterparts. I'll find it somehow.

Subscribing For More Rewards

Phew! Finally made some progress on the EEG programming. Looks like a specific event is responsible for handling events by way of lambda expressions from commands sent through JSON. For the update events, I'll be specifically looking at amplitude and threshold events that are subscribed to by my applications via an Observer pattern.

C++ transforming the AI in my prototype is in the works! I'm still not sure how Event Receive Execute translates in C++, so I focused primarily on the AI controller and how to get an OnPossess Event going like in Blueprints. Looks as if the Possess() function can operate as an OnPossessEvent in itself.

I have also finished with Effective C++! Now onto More Effective C++, though I'm not sure if it was intentional to start with something so basic as "learn the difference between pointers and references". It shall ramp up eventually!

Tuesday, December 15, 2015

All New Way of Making New

Today marked part two of my quest to document all of my prototype code! Don't forget to mark all your functions and data members with proper comments, kids!

Today was also mainly a day off, but I managed a few lessons in, one of which had me really interested!

Step 1: Member functions can have their own templates, including pesky constructor templates - however, when declaring the general function, the compiler will still try to make one in the case of copy constructor/assignment, so make sure to make normal "dummy" versions.

Step 2: When supporting implicit type conversions in templates (operator*, for example), be sure to use non-member functions. In this entire book I'm reading, the author never once recommends friend functions, but they steal the spotlight here.

Step 3: Trait classes help provide info about a class during compilation. Heck, with overloading functions based on it as a type, it can even do if-elses during compilation!

Step 4: Template metaprogramming is a strange beast (using enums to recursively calculate data for loops?!) but if I dare look into it, the possibilities of policy-based programming (combining independent behaviors) for generative applications are interesting, if not compile-time intensive (but hey! The more you put in the compiler, the less you have to worry about it during run-time!)

Step 5: It's possible to use set_new_handler to provide your own error function during errors regarding new - heck, you can even override and put in the old nothrow (return null) example from 1993!

All this is still a barrage of info that I may not be applying to game programming anytime soon, but it all provides me with quite the arsenal to proceed.

Monday, December 14, 2015

In Which Documenting in Hindsight is Probably Important

Today was a big(ish) meeting for the capstone group. Namely, it gives me a little more to do, as I need to document my code a little bit. Ideally we'll be setting up an actual wiki for documentation, but I figured it'd be necessary to note and document data members and function prototypes.

I'm also in the midst of figuring out the translation from Blueprints to C++ in AI navigation, but I'm a little confused as to what "Event Receive Execute" (when an event is executed in a task) translates to in C++. I'll experiment with it tomorrow.

I also did a little bit of pitch-based programming to prepare for (when I actually know how to interpret the EEG data). The data is best represented as a ratio of signal versus threshold, so I represented that signal as a pitch on a soothing sound of ocean waves.

I also learned some more things in studying C++, including the fun of learning a bit how templates work.

Step 1: Private inheritance is good, but denotes more of a "has-a" relationship of composition, in which the inheritor only has access to some bits, as opposed to the publicly inheriting "is-a" relationship.

Step 2: Multiple inheritance is tricky, as virtual base classes may be necessary to prevent replication of base class data. That said, the same thing can probably be done with singular inheritance anyways.

Step 3: Templates imply an interface and do compile-time inherited objects in the case of !=, >, and other such operators that produce a family of related functions around logically valid statements.

Step 4: Use the "typename" command for nested dependent type names (T::iterator, for example) but make sure to keep it out of base class identifiers.

Step 5: How does one access names in template base classes? Using directives and accessing the base class via this-> usually does the trick.

Step 6: Template code usually depends on a parameter - keep the non-template parameters out of the typename specifier and create separate functions to reduce unneeded replication

Whew! What a day - I do enjoy balancing a bunch of different tasks though!

Sunday, December 13, 2015

Need Me Some Rosetta JSON

Today was yet another day without knowing what the JSON data was or how to access it, so I went back to the studying drawing board for today.

Step 1: Try to use includes as little as possible. Separate definition from declaration and use forward declarations.

Step 2: Public inheritance is a "is-a" model. Don't have objects inherit unless they are specifically types of their base class.

Step 3: With that, avoid hiding inherited names (use using declarations to get ahold of functions or even inline functions in the case of private inheritance)

Step 4: Interface and Implementation inheritance? Pure virtual is interface only, virtual is interface and a default implementation, and non-virtual is a mandatory implementation.

Step 5: Instead of virtual functions, try a strategy pattern using tr1::function, function pointers, or even a separate object, but note the lack of access to private members.

Step 6: NEVER redefine an inherited non-virtual function - it gives strange behavior and masks the original.

Step 7: NEVER redefine a function's inherited default parameters. Try non-virtual functions with default parameters that contain virtual functions if that is the case.

Step 8: Composition is the "has-a" equivalent in object oriented programming. If a set isn't a list due to unique objects, put a list in the set for specific, non "is-a" behavior while keeping list functionality.

More steps tomorrow!

Saturday, December 12, 2015

Praise Be The New Cast

Today's studying day focused primarily on various implementation choices and how they affect performance and that exception safety that usually destroys most C++ programs.

Step 1: Like a lazily instantiated Singleton, if an exception is going to stop your code before you can use a variable, define it after the problem section for a little optimization.

Step 2: It's preferential to stick with casting (of the hot, new, and not-C-like C++ cast!). Whether it be the casting away of constness (const_cast), determining an object in an inheritance hierarchy (dynamic_cast, but due to the cost of calling 4-5 strcmps if the level is deep enough, save a smart pointer to derived classes or use a virtual function for access), unportable casting (pointer to int? Well, there's reinterpret_cast...) and implicit conversion forcing (static_cast). Despite the costliness of dynamic_cast, the C++ casts are simpler to identify and are definitely preferred. Praise be.

Step 3: Avoid returning things like pointers that may be const and protected from being changed, but that reaaaally private data member can be accessed from the const reference.

Step 4: Exceptions are bad. Either don't throw one, or ensure that if an exception is thrown, the data remains in a valid or otherwise unchanged state. A neat way to do this (cost aside) is the copy and swap method, in which a copy of data is made and changes are applied to it. If the exception is thrown, the copy is ditched and the original is clean. Else, swap it!

Step 5: Inlines can be very useful, especially in templates. Both are in header files, so it makes sense to combine the two wherever appropriate? Nope. If one has to change implementation on inlines, that requires recompilation (instead of relinking or even swapping dll files). Best off if the function is short, frequently used, and trivial enough to not require extra implementation changes down the road.

As for the EEG software that I've been working with, I finally found where the Unity file is so I can change files! Oddly enough, everything was lowercase so nothing worked (Unity being all case-sensitive about its classes matching its files) so I worked through that and no errors are found. Now I just have a pile of JSON gobblegook that I can't read, so I'll have to speak to the person in charge.

Friday, December 11, 2015

Because a Red Sky is Too Boring

Today was the beginning of what would be my dual pronged effort during winter break; to manage EEG reading applications on Unity and study more effective C++.

For the EEG readings, I mainly familiarized myself with the information. Unfortunately, the readings seem to be in large blocks of text instead of anything specifically corresponding to positive/negative readings, and the reward system seems not to be reading either. I've gotten the procedural skybox to change color on command, so the visuals seem to be all  set for the upcoming data.

As  for Effective c++ learning, I've learned to store resource allocation in standalone statements (since we can't trust the order that compilers will work them out) and went through some vague atrocity regarding interface design. Passing by constant reference instead of value definitely helps, especially with the hidden overhead involving copying data. However, especially with the tricky nature of deleting local objects, it was best to return a value. I also thought through the section on the importance of private members, and have always felt off regarding encapsulation only as a means to hide data. (So many times when I wish I would access data but can't) Instead, encapsulation involves the ability to update an implementation (a function) across an entire project, and can put more in a get/set than just getting and setting.

Privatizing data is OK (and actually fairly annoying from a client standpoint), but I can see where encapsulation is a lot more than privatizing data.

Wednesday, December 9, 2015

Effectively Studying

Today (and yesterday, nothing like forgetting a post!) marks the first day of winter break for me! I mean, I did have some quick things I had to fix up regarding our capstone demo (two-sided gravity bubble meshes and a post-processing effect that appeared whenever the camera was in range), but I can be definitely sure that I don't have to worry about it.

What I can worry about now is studying for next semester! I'm currently traveling my way through the tomes of Scott Meyers and am learning plenty along the way that may sound simple, but can foolproof C++ code to suitable levels. This mainly seems like a link between the tenets of game design patterns but also extends C++ specific terminology. I'm not the biggest fan of the way the work is presented (must read the entire book before fully understanding Chapter 1) but it's the best I've got.

Got a problem with #defines? Use consts, and make sure you stick to conceptual constness with the help of mutables! Got a problem with protecting the address of constants? Use an enum instead! Make sure to initialize objects before they're used (member constructors) and know when to cheat by privately declaring functions in a base class so the C++ compiler won't try to generate faulty stand-ins! That's some of the stuff I have so far. We'll not have too much in the way of screenshots for now, so hopefully the written word is just as satisfying.

Monday, December 7, 2015

Day 106: The Last Day...For Now

Today is the final day before my work is done with the capstone prototype. (That, and the rest of the semester but there's a final exam coming tomorrow soooo)

Today was mainly a day to put in bug fixes. The gravity well, when attached to the insects tended to exert force on its parent objects despite being attached, so I decided to give the gravity wells a reference to their attached actors to make it detectable in both C++ and blueprints.

The little guys also had a tendency to run into each other, but I found out that Unreal Engine 4 fortunately uses an updated version of Recast (well well... we meet again) and had a controller for Detour crowding, so I updated the insect AI controllers.



As for tomorrow? Here's hoping for the best! I'll have to brainstorm on what I want to look into for my down time.

Oh yeah, forgot to mention that we emergently found the ability for two gravity wells to form a bridge of blocks with two counteracting forces. Neat!


Sunday, December 6, 2015

Day 105: Logical Corruptions and Wiggly Insect

Today was a day to start up polishing and thinking of any extra additions that we may need for the capstone pitch. In order to logically extend and help further the plot and mechanics, we came up with the idea for the opposite of a gravity well (a gravity geyser?). Essentially,  it negatively reacts with the ley energy that forms a gravity well and uses repelling energy instead. I imposed some dark effects and negative tessellation for a nasty little piece:


As for the insect, we finally got a skeletal mesh in, which required me to make a couple of changes (remove the static mesh) that I'm still working the kinks out of. The main kink is getting a skeletal mesh to fly through the air properly:


I shall persist! When I am less tired. XP

Saturday, December 5, 2015

Day 104: No Longer Blocked By Blockage

Phew! The Xbox cross-platform project is finally through. After managing all the collision boxes (to follow the rules of DirectX's flipped y coordinates) and properly setting the fade value (0xFFFFFFFF was how colors are stored, with the most significant bits holding the alpha. Therefore, I couldn't just overflow the values by adding past 0xFF. Bit shifting helped fix that up rather nicely!

As for the extremely hard part, that involved working XACT audio in the sound. The playing sound part was straightforward once the sound bank was set up, but actually setting up the audio is the hard part. When setting up a project in XACT, one starts with a wave bank, which holds wave files. Wave files can be stored (one or more) as sounds in a sound bank, which also have cues to play those sounds. That all together, I also didn't know a very important aspect to our testing; the music media was loaded in the hard drive memory of the XDK, so the bank had to be setup as streaming from the hard drive instead of in-memory. After that? Well, things fell into place from there.

Now back to capstone, I was also surprised to see how much I had finished up once I tackled the LeyBlocker. That object had some odd logic attached to it, or that the actors I was assigning the laser block point to kept switching places with the next pedestal as a target point, causing a nasty flicker (which I assumed was bad line tracing). Now with that and adding in some art for the insect AI, things are slowly coming together:




Friday, December 4, 2015

Day 103: Experiencing Quite the Blockage

Today's a day where I should be less tired when writing these blog posts. The Xbox project has the starting screen rendered (whew!) despite the flipped coordinates, but we're unsure whether that'll translate to movement and collision as well.

For the Unreal Engine project, I focused a little time on blocking objects for the ley lines; however, it's got me stumped. The ray trace (SingleLineTrace, MultiLineTrace, etc) is not functioning on specific frames; despite the fact that there's an object blocking the way, it flickers constantly to its original orientation. I'm wondering if this is the right solution...

Thursday, December 3, 2015

Day 102: Ley Nodes From The Ground Up

Today was a pretty busy day; after some grueling work in #defining all the OpenGL code from Robotron, my partner and I finally figured out how wave files are stored in wave banks which are stored in sound banks. Fun stuff, that XACT audio.

As for the prototype work, I worked an endlessly moving object that can be slowed by time dilation. The interpolation of locations can get a bit slow when they get close enough, so I put in a minimum distance until it immediately switched to the next position for smoother movement:

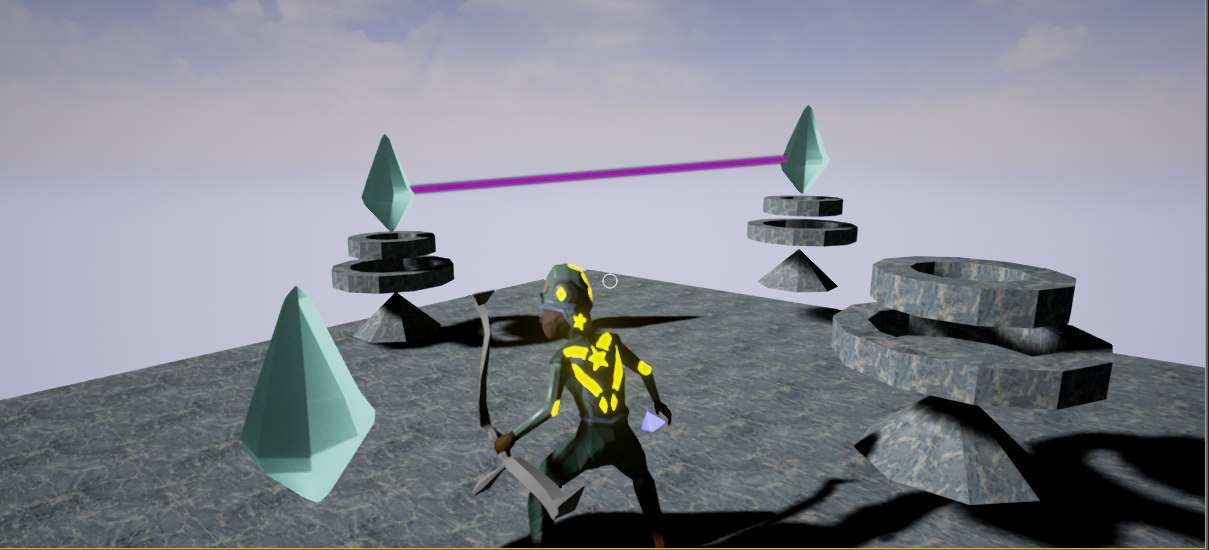

After speaking with my producers, I also had to rework plenty of the nodes. Instead of always being connected, we've decided to set pedestals as snap-to locations for nodes, only updating their connections after attaching or detaching from the pedestal group. Thankfully, the use of forward declarations made keeping references of objects much simpler, as long as it came before the generated header:




What next? To be honest, this recent rework knocked most of my to-dos out of the ballpark. I think I'll focus plenty on the Xbox project now.

Wednesday, December 2, 2015

Day 101: Weightless Ants in Space

Today was the final finishing touches on the feedback for Robotron. That start screen now includes the family members and player all showing off for a neat intro:

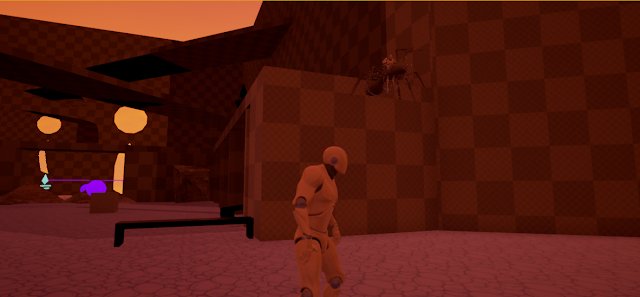

As for RPP work, today was an especially tricky day. The new character animation and mesh was finally in, so I had to connect all previous casting to a third person character to this new blueprint. Luckily enough, I updated the AI to now spawn and get distracted by said new character's arrows. This was a similar aggravation check with a lower priority and a higher radius to track down player projectiles:

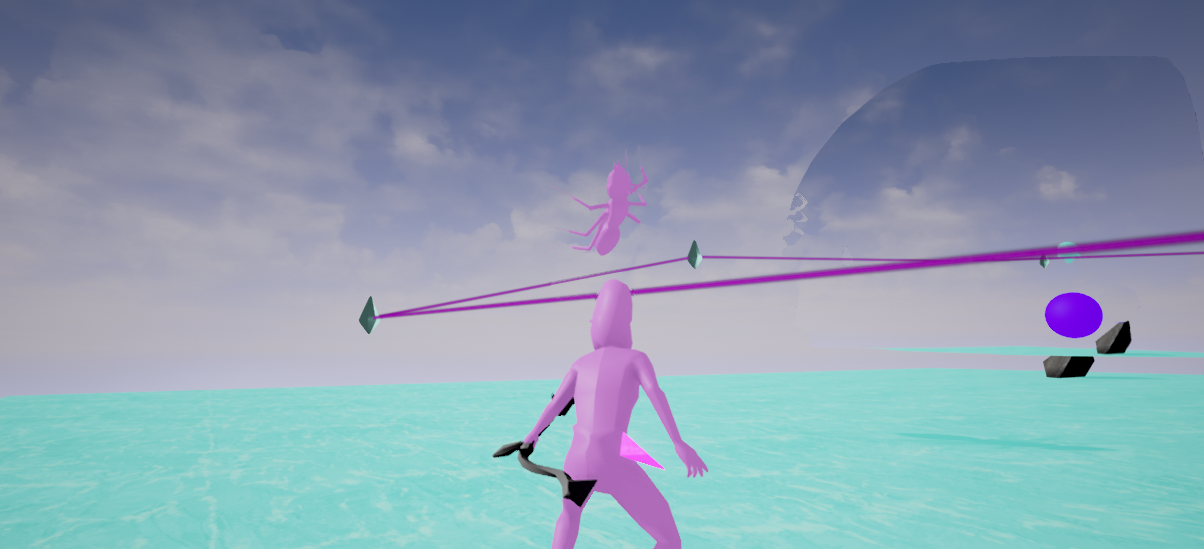

The last trick with AI was ensuring weightlessness without interfering with the character control. What ended up was a complex set of disabling and re-enabling colliders that never got the ant mesh to appear in the right place. This required the dirty fix of respawning another ant in the exact same spot, but it works:


What next? Non-AI things. (Thank goodness)

Tuesday, December 1, 2015

Day 100: Somethingtron 2084

Today was a big day to wrap up the basic PC build of Robotron and respond to feedback. Today, the feedback was relatively positive; we just need a start/game over screen, lives, a wave counter, a no-spawn rectangle, and an effect to begin the level in a non-abrupt fashion.


The tricky part came when we had to come up with a substitution effect for the scanline blast that was so prevalent in the predecessor. The arcade itself had a custom graphics processor that allowed the lines of a sprite to split apart in a dramatic fashion, but that would require an insane amount of overhead from us when the project (in Xbox form) is due in a week. What to do? A fade-in effect, employing the transparency that the original game lacked, helped us immensely.


There was little I did for capstone today, but firmly established that since MoveTo for locations is not functioning for my enemy character, using waypoint actors in lieu of locations is a much more intuitive and better scheme for proper patrolling.

Monday, November 30, 2015

Day 99: Tired, Yet the AI Advances

Today was an especially tiring day. Managed to get the finishing touches on Robotron's score, using the modulo operator to get each digit and constructing a score with resets for a playable game:

 I also learned that hulks change direction when you shot them. Who knew?

As for the capstone work, AI was so especially fiendish that I forgot the blur-based health system I put in earlier today:


Turns out the AI doesn't respond to traditional MoveTo nodes excepting a special MoveTo function that DOES NOT STOP moving toward the player, even if the original target object is no longer on the blackboard. The only way to stop this was to set a StopMovement function to halt the target in its place. If the AI MoveTo node doesn't work for location, I'll have to setup a series of empty actor waypoints for patrol navigation in the meantime.

Sunday, November 29, 2015

Day 98: Death From Above

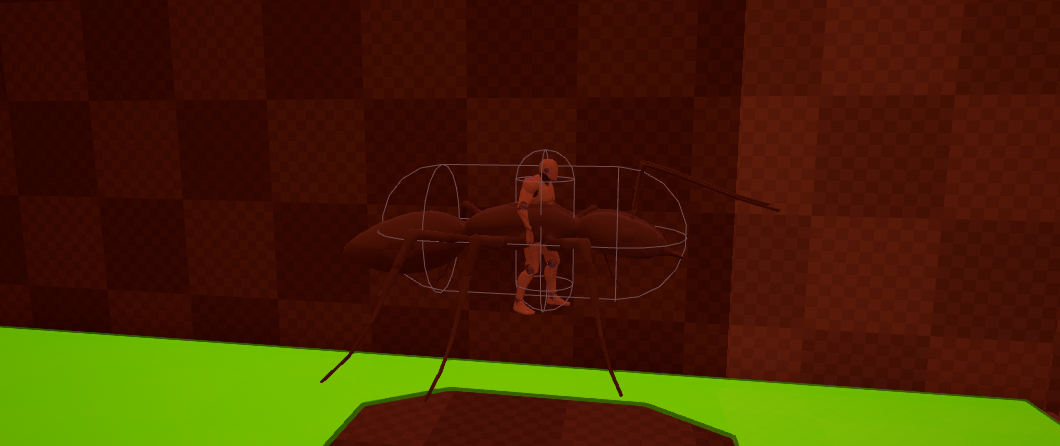

Today was the day that AI finally gets built in. The ant itself is a bit of a workaround; the AI controller requires a character class, which means a skeletal mesh with specific animations. For now, I put in a human character and made him invisible, rendering the ant a menacing foe:

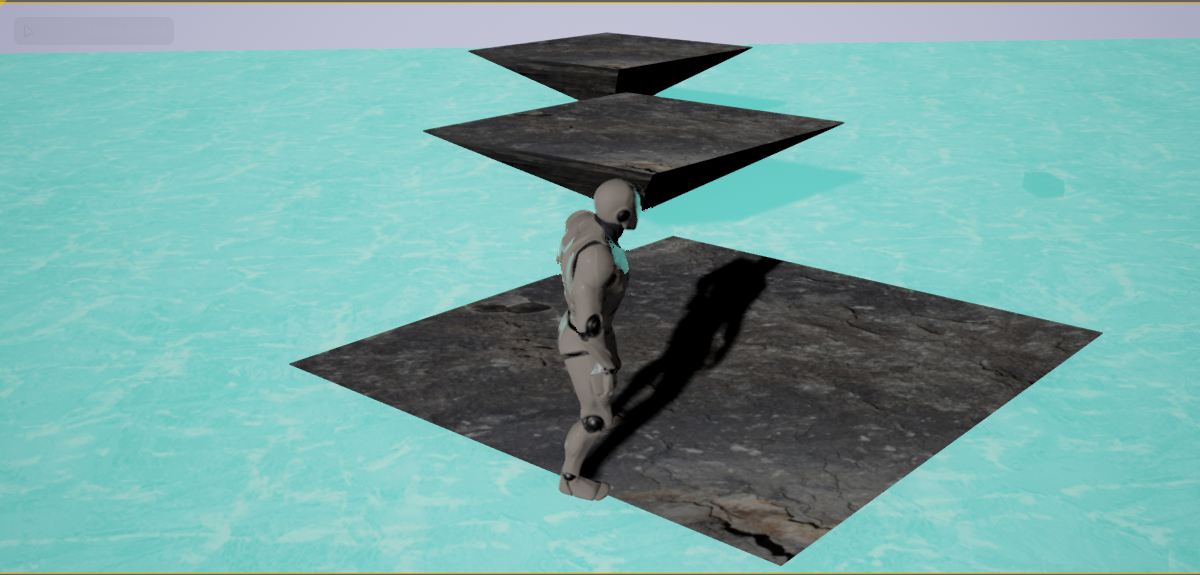

As for the movement, vertical traversal is a tricky thing with Unreal. Technically, the engine offers nav link proxies, or points where one can exit the navigation mesh for a short time. This constrains the jump points to certain points but allows a specific to/from movement that allows ledge jumping:


As for the to-do? The ant is affected by gravity wells and time dilation, but I have to figure out a way to disable the character movement so it can float like a good (pink?) object.


Saturday, November 28, 2015

Day 96-97: Spending Some Time With Friends and the LAST HUMAN FAMILY

These past few days have been busy catching up with good times and good friends (blurgh, it's a holiday, why not?) but I've managed a bit of work here and there.

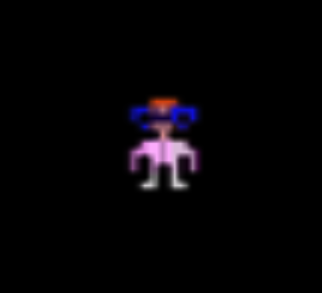

First off, the last human family. Sounds dramatic, but they're the score items in Robotron, and they have an oddly complex movement system compared to the rest of the enemies and player. So complex that I had to write a new collision system that not only returned a bool if it was colliding, but passed a variable by reference to store the direction to determine where the family member would be going next. The family member can move in 8 directions (cardinal, diagonal), so the direction of their collision directly affects their diagonal movement change.


As for the capstone work, I've been inching myself toward the AI elephant in the room. I'm not too familiar with any kind of AI (nor interested, sadly) but figured that at least a simple AI for enemy interaction in the game would be used. In that case, I've been going through Unreal's creation of blackboards, behavior trees, and decorating pawns with AI control tasks. We'll see how it pans out tomorrow!

Thursday, November 26, 2015

Day 95: Happy Thanksgiving With Some Extra Work

Today contained a little bit of work for me today, despite the holidays. First off was a charge shot; by setting the projectile's construction script with an input parameter for initial speed, I could grow the initial velocity over time. As for the gravity well and time dilation, timing differed for each one. For the gravity well, the class could be timed and destroyed (called by way of the blueprint), but for some odd reason, the test object that the gravity well was attached to still had the component despite the destroyed actor. Thankfully enough, the blueprint could still detect a destroyed actor within a child actor component, but this illuminates the tricky issue with blueprint and C++ communication. Heck, the blueprint interface is even quite limited, as for the dilation slow down and deactivation, the function has to be reimplemented for EVERY subclass object. Blarghle.


Wednesday, November 25, 2015

Day 94: Hitting A Wall, Metaphorically and Literally

Today was the perfect day to work on walls! Got myself to work field collision for the Robotron project so the boundary field could have four different collision checks to test each boundary as necessary. So far, with the addition of a slight top/bottom offset, it works well.

Today was also not the perfect day to run into a wall. Turns out time dilation in Unreal Engine 4 is SEVERELY limited by the PhysX it relies on. The Custom Time Dilation, supposedly for actor-based movement, does not keep into account physics-based motion. Strangely enough, Global Time Dilation is not affected by this issue.

How to fix this? ...There really isn't a way. Linear and angular damping can be increased 10-100 fold to limit individual movement, but still moves rather quickly when interacting with the player and adding forces. I'll have to run it by my producers to see if they want to continue further down that route.

To turn things around, I also looked into tessellation passes on meshes and distorting them with the extra vertices, allowing a neat crystalline effect that can grow as the gravity well crystals grow. By taking the vertices and displacing them by a combination of a tessellation height and a provided texture (normal, other texture, etc) one can achieve a really neat effect:



Oh yeah, and things also deactivate based on the tracking crystal instead of a tricky timed effect; it fits plenty better with our existing mechanics and provides some interesting limitations on the various effects of each line.

Tuesday, November 24, 2015

Day 93: Plans for the Future and Extra Cronies

Today wasn't too much of a day for RPP progress. My producer had me work projectiles as a means of switching (along with the ley line), which had me battling some blueprint code that replaced my ObjectToActivate (the mystic moving objects) with something else. Careful surgery (ripping it out) fixed it right up.

As for the critique on this round...eh. I think they missed the point. We do have some ideas on iterating upon our progress so far, especially the personal time dilation (along with global) and attaching attunement based on the tracking crystal's current color.

Robotron, though, went splendidly. I worked the Grunts' behavior (normalizing the distance toward the target and move toward it) along with the Hulks (randomly move in a direction). When destroying the mines (first time, since the player can't move yet), I had to move the object up and right by half the width when scaling down to make it look like the object is shrinking toward the middle.

I also worked a function to draw two quads on the hulk, one for the flashing portions (white texture part) and the rest of the hulk to get that flashing piece effect:



Next? Well, as you can see, hulks and grunts can't go through walls. Gotta fix that.

Monday, November 23, 2015

Day 92: Growing Wells and Flashy Triangles

Today was a day to help focus functionality of the various little effects that I was tasked with over the weekend, namely the gravity well. Unfortunately, the gravity well had to reflect its function from C++ to blueprints. This got especially tricky when dealing with the interface. The interface controlling states was a blueprints-only one, meaning I had to focus state functionality based on whatever implemented the interface.

After that, I had to find a way to put an interface function in to get the color state, so the gravity well that would appear from projectile impact wouldn't effect the object that made the well. Also, thanks to the wonders of overlap events not working if nothing overlaps it yet, I had to make a fancy growing well that varied the new refractive textured mesh along with the sphere radius. It's undergrad all over again.



After hence, I made some more progress in the OpenGL project. It's looking a little more like Robotron, with a second texture (no more hardcoded GLTexture enabling, framework!) and gave it a static manager that flashes obstacles with the exact same color over time, along with a randomizer that used time for better seeding. Soon, I shall have input functions. Someday.


Sunday, November 22, 2015

Day 91: Sometimes The Gravity Wells Come Back... Again

I'd never thought that a mechanic I implemented in a previous project would make a reappearance, but here it is. After working with the tracking crystal (which, by way of storing all nodes in the scene and detecting which one is closest to shine it with a specific color (double-parentheses note: will be optimized by not checking every single frame)), I also had to make a quick fix on the nodes. Seeing as nodes will not always be boxes, I had to update the entire parent object of the node to a more generic sphere, instead of a box one can jump on. This may also lead to work in the future that concerns where the node rotates once detached.

As for the gravity well, I had actually implemented a similar concept where an object would disable gravity on an object and instead apply force toward a specific point. It's thankfully quite simple, but will vary based on the object. A character movement component is quite straightforward, but anything else will either have a pawn movement component or a specific primitive component that has physics enabled. We'll keep it to the mesh for now.




As for one last thing, I also applied a custom time dilation effect for later, so that the entire world slows down (projectiles included) until sped up, allowing such things as a circle of projectiles to be drawn around a target. The way that time dilation works for objects in Unreal Engine 4 is that a global time dilation is multiplied by an actor-specific time dilation. That said, if the whole world were to slow down except for the character, the character would have to vary dilation to be higher than 1.0.

Next up? Not sure. Design needs a bit more work before I can continue further.

Saturday, November 21, 2015

Day 90: Attachment and Mystic Moving Object Thingies

Today was another day of good capstone progress! I worked with the objects whose behavior was activated by the beacon from yesterday, namely mystically moving objects. These objects block like platforms but ignore physics, so I could control their movement and rotation via interpoloation. Unfortunately, due to the Euler-angle focused rotation, I had to constrain the rotation of at least the pitch to below 90 degrees.

The good part about these objects, though, is that they can be referenced by a grouping object that can activate them all at will. I applied the same to the nodes so the producers can easily see them.

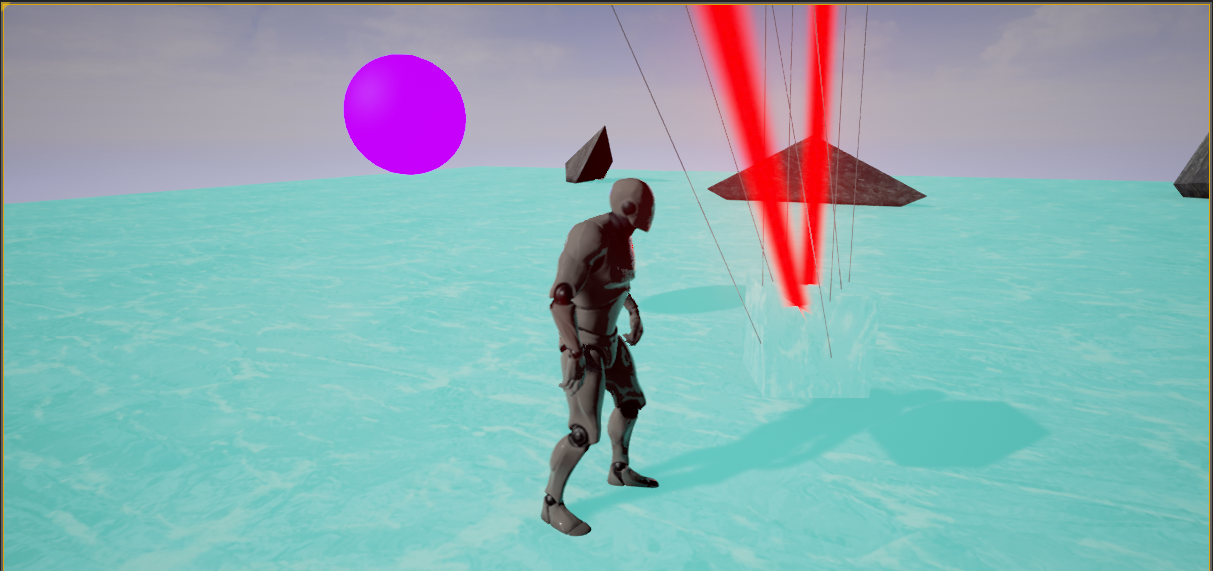

Next up was a tricky part; the pushing was not a desirable moving strategy, so the next effort was to attach them directly to the player. If the player just snap-attached them from wherever they were standing, there was a danger of the force propelling the player at a ridiculous speed, so I put an attachment point slightly ahead of the character, a placement distance, and disabled physics for the node when attaching. Even so, I had to change up some things (no locking movement anymore, just extreme linear damping) because the node would remember its previous z position and snap back into place.





Next up? They really like the idea of a black hole; thankfully, this is where undergrad experience comes in.

Friday, November 20, 2015

Day 89: The Ley Lines Bleed Red and...A Single Sprite

Today marked some fairly good progress in getting used to Unreal Engine 4 C++ programming! (moreso than "Don't put includes inbetween generated headers and UCLASS!") but hey, I discovered that too.

The plan today was to create a collider for the ley lines themselves; calculating the collision from beam particle systems is (impossible?) risky business, so I used a simple collider. Problem was, I had to change the collider on the fly in accordance to changes in the beam itself, so I placed the collider in between two connecting nodes, rotated it in the direction of the cubes, and set the extents to the distance between them. Problem? For some reason, box extent length is not world space length, so I had to apply a little extent reduction offset before the colliders would show:

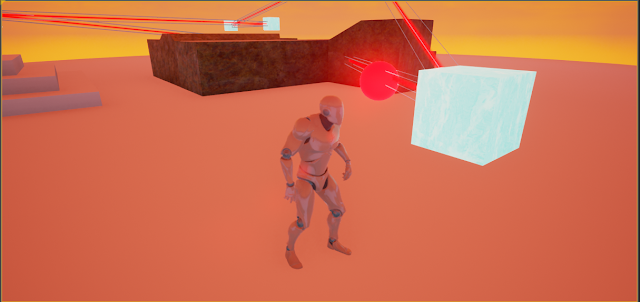

After hence, I also put in the switch for the ley beacon. The ley beacon would react based on the line that had touched it, so I considered changing the material instance parameters. From what I remember from previous UE4 work, the program needs to create a dynamic material instance and change those parameters before applying it to the actual mesh's material. After applying another exposed color parameter from the particle beam (why Color Scale Over Life instead of Initial Color, I will never know), the beacon lights with whatever ley line touches it.




And also! Back to the programming project side of things, today also marks the start of working in the Xbox XDK, or (with less fanfare) a horribly deprecated version of OpenGL. If only they could tell me earlier that it was just an obsolete OpenGL instead of some fancy framework, I could have studied beforehand, but I persisted nonetheless to bring a single sprite to the screen:



To-do: decrease the default resolution, but I can barely see through all these MAGIC NUMBERS IN THE FRAMEWORK

Thursday, November 19, 2015

Day 88: Laser Ley Lines

And thus begins the first prototype with Unreal Engine 4 and C++. Phew! I'm getting a little more of the hang of it compared to last time (note: Do not place any header past the generated headers for includes).

The first step was to place nodes on the screen that the character could push around. By switching the linear damping of the nodes while enabling physics, one could resist the character when it is not pressing a pushing button.

Working with the collision delegates is a little trickier with UE4 than with Unity. There's no OnCollisionExit; there's only an OnHit and OnOverlapEnter/Exit. Knowing this, I had to mix the overlap event to enable checking that would allow the character to enable pushing when it hit the node.


I'm also in the midst of working on the ley line as a beam particle, rather than a spline mesh. The spline is lovely, but definitely looks strange when stretching the mesh. We'll see if I can switch the settings of the particle system on the fly.


Wednesday, November 18, 2015

Day 87: A Bunch of Cubes Shaking Around

Today started our official capstone prototype groups! That said, I actually kept working on the Boggle assignment.

Setting up the board with proper allocation of memory was a simple task in comparison to the strange myriad of rules that would come up in getting Boggle to work. I had a recursive function that would search through every letter of a string until it found an answer, something like that of a depth-first search.

However! I had to check for all special cases that would stop the search early. What if the next word had a greater letter (Z > A, in character terms) than where I was checking? What if the word was smaller for the next check? What if, by strange circumstances, I could go to the word that contained the same third letter but not the second letter? What if the word already was found? All these and more required special checks, even moreso tracking what was already traversed.

The solution? Lots of memory allocation. The traversal charts would differ for each and every single branch of traversal, so I had to be careful to only allocate when necessary. For example, when testing every adjacent cube from the target, I could use memcpy and reset the traversal for each and every single recursive traversal, saving up on allocation of memory by reusing it as necessary.

What next? There are some edge cases involving words in the dictionary that contain punctuation, but I'll get em' settled out.

Tuesday, November 17, 2015

Day 86: Boggled

Phew! That marks the end of the mobile prototype. Now onto other things!

That other thing in particular is another programming assignment, the simulation of the game Boggle.
Luckily enough, I'm quite familiar with allocation of memory from the heap and how it'll be required for our assignment.



The dictionary of words in question will be read from a list and put into a linked list structure. Since no words will be added or removed from the list, there thankfully won't be any functionality other than allocation of the list and freeing the memory as necessary. Same for the board as well; the professor has provided us with a series of constants that are represented as dice. Unfortunately, there's no way that one can just iterate through constants excepting the creation of a dice array (more allocation!), so I'll make that my next step. If I can get a board of dice printed today, I can tackle the more pressing search work for tomorrow.

I'm quite excited that I actually know what I'm doing for once with memory allocation!

Monday, November 16, 2015

Day 85: Nearly There

And the demo is upon us! After adding some art assets last night, the team had me work a little less color interpolation and a little more art into the scene. Switching from a black color to an actual ink overlay required a bit of re-work, but by actually attaching the ink overlay to the player at all times and varying its alpha, I got a nice sludge effect going on:



After that, it was the damage states. Instead of a red color interpolation, I have three different images for low, medium, and high damage states. Multiply this by the number of hats (6!) and.. that's a lot to program in. The parameters now take three sprites on the side and required a bit of rework in the store for each option to reflect those changes. Thankfully we have a full and workable game going in time for interim tomorrow.

What next? Yeeeeagh. Unless I know which capstone team I'm on, I'm not completely sure.

Sunday, November 15, 2015

Day 84: Playtesting Extravaganza

Today marks the day our game is nearly and fully complete! With extensive playtesting, we've found numerous bugs (and fixed them), involving invincibility that doesn't go away, players that creep off screen, and disappearing bears. We also added new art assets and the same explosion in the beehive mortar was later used in enemy death effects, along with buttons that showed what shoot mode was selected. In the case of those buttons, the alpha would be a more opaque value if the mode that the player was shooting matched the mode of the button. For non-shooting buttons, the use of an invalid enumeration sure came in handy.




The big thing that my producers worked on (gotta love em') was a shop that one could access and purchase lovely cosmetic changes in the form of hats (bear, cat, Pikachu, etc) with the use of points earned in the game. It was tricky taking those changes and saving them across resets, but they managed it!




What next? If there needs to be any tweaks, I'll be there to fix em'.
